Duotone Stingray SLS | Stingray 2024

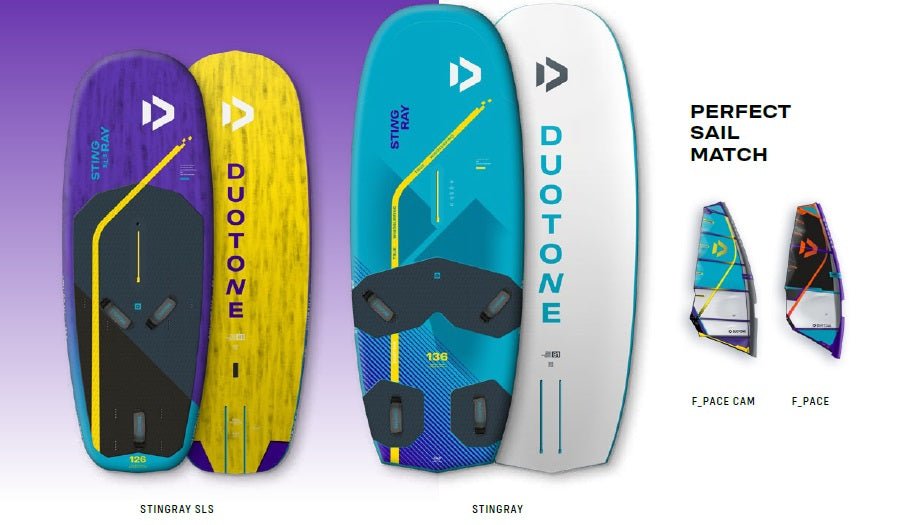

The lineup consists of 3 distinct design concepts:

STINGRAY 136

Perfect for those entering the exciting world of Windsurf Foiling, the 136 offers generous dimensions allowing usage in lighter winds than you need to waterstart making it comfortable to uphaul and to get you up and flying in the lightest breeze. The backward-oriented volume allows you to move your feet close to the foil before the board is even in motion. However, as the STINGRAY 136 has a similar aspect ratio (length to width ratio) than the other sizes it’s by no means a dull board to ride. It will therefore grow with you as your skill and performance level progress. Beveled rails at the nose aid smooth out landings and recovery from touchdowns. Updated for 2024, it now includes CONVEX TAIL CUT-OUTS, minimizing wetted surface for smoother take-offs and quicker flight transitions.

STINGRAY SLS 126 and 116

The focus on innovation was centered here with both boards having a complete redesign this year. With lengths of 206 and 196 cm respectively, these New School Freemove foil boards are very compact. This reduces the nose weight for an immediate take-off into flight mode. The reduced swing weight also makes these boards more aggressive to carve, jump and rotate on the foil. These 2 sizes are also equipped with our brand new CONVEX TAIL CUT-OUTS.

STINGRAY SLS 103

The smallest STINGRAY is designed for progressive foilers with focus on manoeuvres rather than straight line performance only. The 103 allows riders to link carves, 360s, and even air moves within a short time and distance. For quick change of directions with great connection to the foil - built to carve and pop! It is simply a 100% Freestyle Foiling optimized design.

All sizes now feature the Track Box System exclusively, eliminating the additional Tuttle Box and reducing weight by approximately 600 grams. This adjustment results in a more balanced board, facilitating quicker take-offs. Additionally, the new FAST MOUNT SYSTEM allows for easy foil mounting from the tail without dismantling screws and nuts (except for size 136). Be the first on the water with the STINGRAY series!

Video

Key Features

Fast Mount System: The new FAST MOUNT SYSTEM allows to mount the foil from the tail without dismantling the mounting screws and nuts (except size 136).
2 Technologies: Available in PREMIUM SANDWICH TECHNOLOGY (SLS) or EPOXY SANDWICH TECHNOLOGY
70% EVA deck: A large 6mm deck pad covers the entire stance area which results in a foot-friendly riding sensation.

Tech Features

PREMIUM SANDWICH TECHNOLOGY: The PREMIUM SANDWICH TECHNOLOGY consists of 50 individual parts and components and is our lightest semi custom technology. Achieved through lighter raw materials and a higher carbon content and a sophisticated layup with a much higher amount of load spot specific patches, stringers and reinforcements. Important these weight savings do not go to cost of durability. This is why as the first production brand we offer a 1 YEAR UNLIMITED WARRANTY on these boards when registered online (dents excluded).
ASA SANDWICH TECHNOLOGY: Our strongest technology to withstand even the harsh daily life at surf centers. That’s why we use 0.8mm thermoplastic polymer ASA skin at the outside covering the EPS-Epoxy-Glass sandwich core. Besides its great shock and impact energy absorption ASA offers an incredible UV- and weather resistance. This makes this construction the ideal choice for center boards.
Deck Shape: Flatter deck shape for comfortable stance and maximum control during jibes.
Duotone Premium Strap incl. multi-plugs: High quality closed cell neoprene for maximum longevity. Only black Lycra coating guarantees maximum comfort as well as maximum durability. The strap features measurement markings to allow you to quickly set up and replicate your individual size.DUO RIDING STYLE PLUGS: Inboard position for improved manoeuvrability and a more relaxed riding styleOutboard position for a more performance oriented riding style
Outline: SIZE SPECIFIC LENGTHThe 136 size has a slightly longer length to gain noticeably more control, ease of use and effortless take-off. Having some length at the front also softens re-entry, minimising catastrophic touch-downs make it the ideal beginner foil board.The other sizes are much more compact to reduce the lift required for faster take offs and to keep them flying. The compact length makes these boards also more lively increasing maneuverability.
Rail Shape: Fuller rails to generate maximum righting moment plus forward drive for faster take-offs.
70% EVA deck: A large 6mm deck pad covers the entire stance area which results in a foot-friendly riding sensation. The heat pressed diamond grooving pattern protects the EVA against abrasion and provides an extraordinary grip level. The pad ends above the rail for longevity when stored and pushed into board-racks. We only select EVA colours which don't look dirty after use and will also resist fading after hours in the sun.
Bottom Shape: Double concave Vee-shape in the nose prevents catapults when touching down at full speed.CONVEX TAIL CUT-OUTS (except size 103) reduce the wetted surface. This decreases the drag before take-off and accelerates the transition into flight mode.
Rocker Line: Rocker line developed over decades that generates enough lift whilst still releasing drag, a key performance component of modern foil sailing
Fast Mount System: Be the fastest on the water >> the new FAST MOUNT SYSTEM allows to mount the foil from the tail without dismantling the mounting screws and nuts (except size 136).No more multi system boxes >> saves approx. 600 g and prevents the board from becoming tail-heavy/sticky.
EPOXY SANDWICH TECHNOLOGY: Durable budget friendly sandwich construction for everyday use. Our exclusive superlight EPS core gets covered with a 70% wood sandwich. Additional glass reinforcement patches around the critical impact zones ensure structural integrity. A thick, durable outer skin gives the hull maximum strength, as well as making it ding and impact resistant.

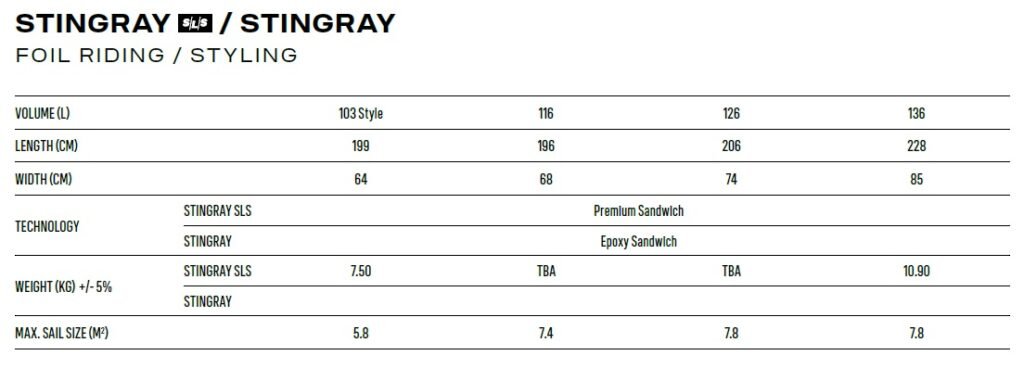

SIZES & SPECS

Item Number
